How to set up a PLC fiber optic splitter

Setting up a PLC fiber optic splitter involves selecting the appropriate splitter type, preparing the fibers, and carefully connecting the input and output fibers to ensure minimal signal loss and reliable distribution.

Step 1: Choose the Right PLC Splitter

Select a splitter based on your network requirements:

• Split Ratio: Common options include 1×2, 1×4, 1×8, 1×16, 1×32, and 1×64. Lower ratios are suitable for fewer users, while higher ratios serve more endpoints .

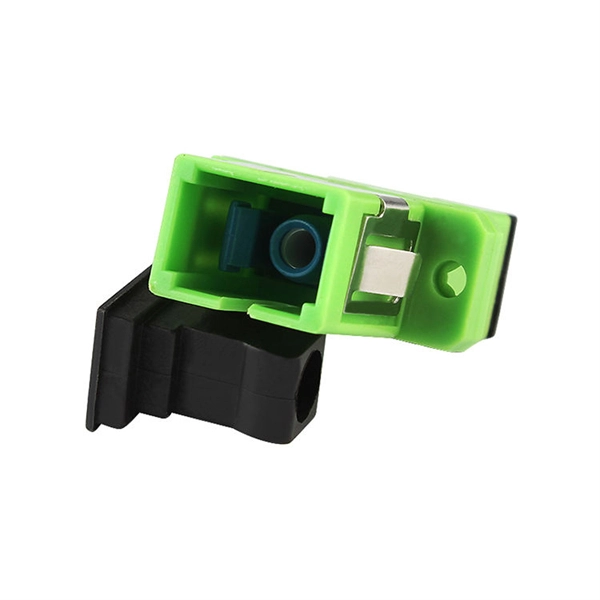

• Connector Type: SC, LC, or FC connectors should match your existing network equipment .

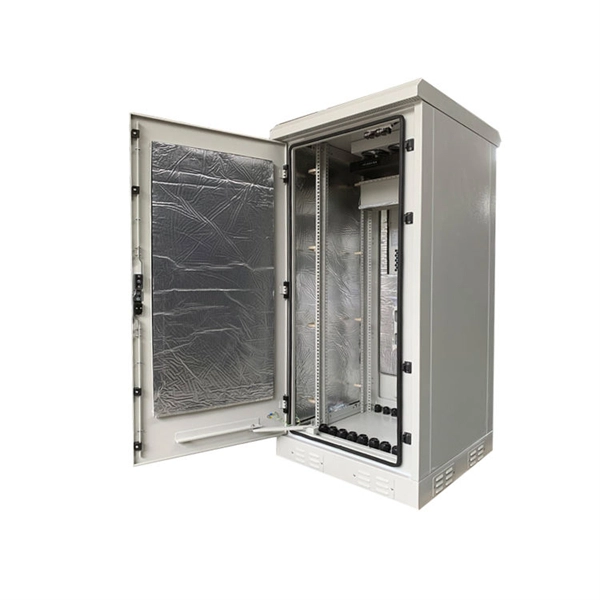

• Environment: Indoor splitters may use plastic or metal enclosures (IP20), while outdoor splitters require ruggedized, weatherproof enclosures (IP65/IP66), .
• Fiber Type: Ensure compatibility with single-mode or multimode fibers depending on your network .

Step 2: Prepare the Fiber Cables

• Strip the fiber jackets carefully without damaging the core.
• Clean the fiber ends with isopropyl alcohol and lint-free wipes to remove dust and contaminants.
• If using bare fiber PLC splitters, plan for splicing or pigtail connections to the network fibers .

Step 3: Mount the Splitter

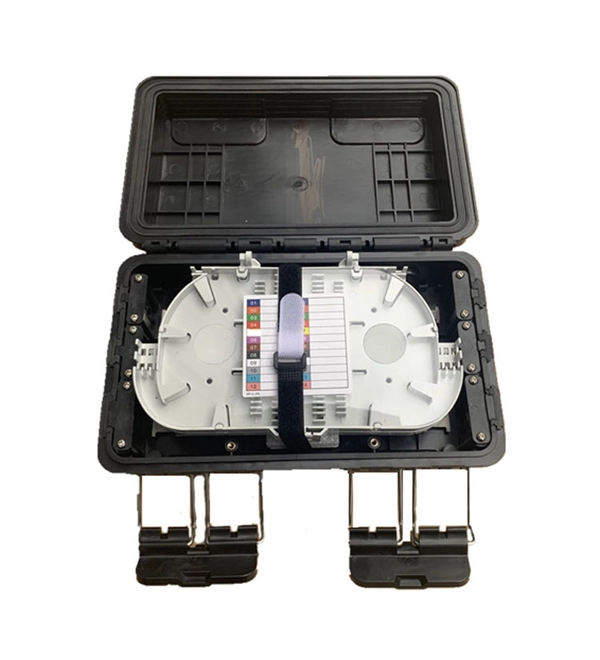

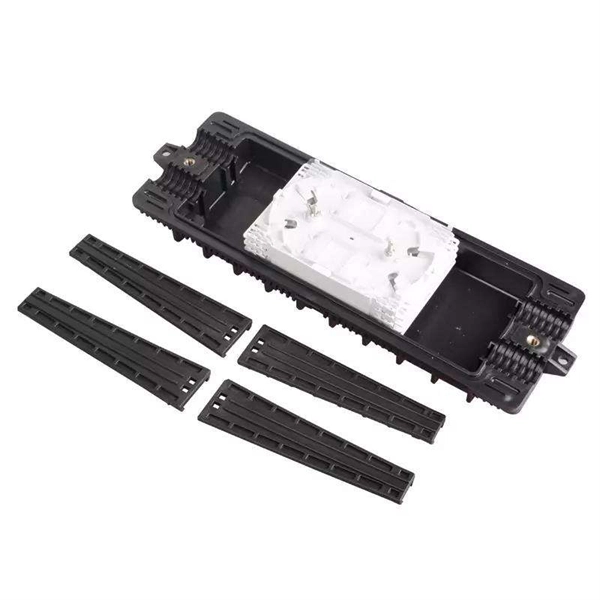

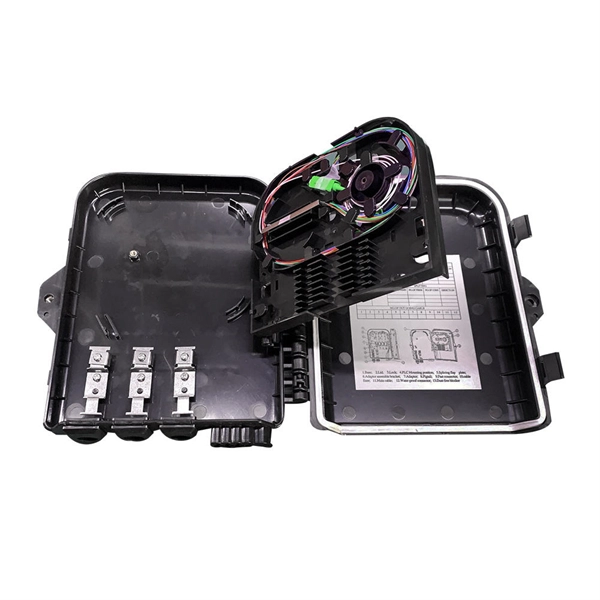

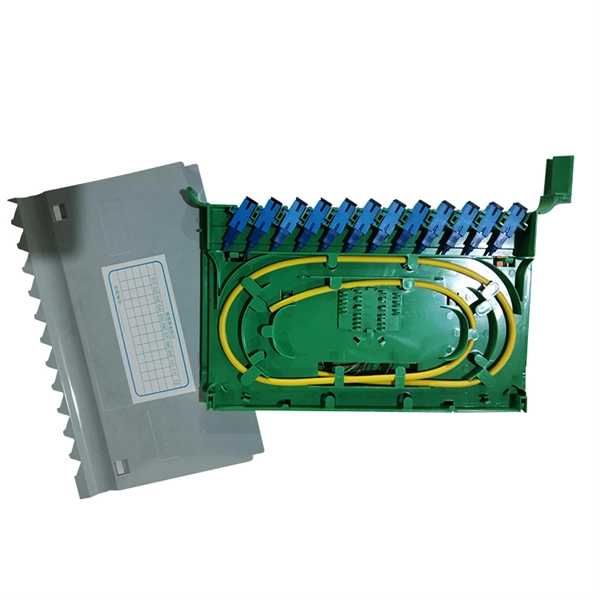

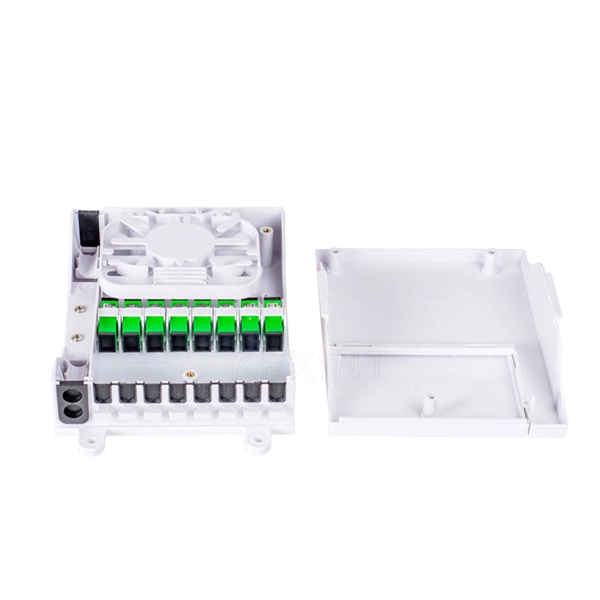

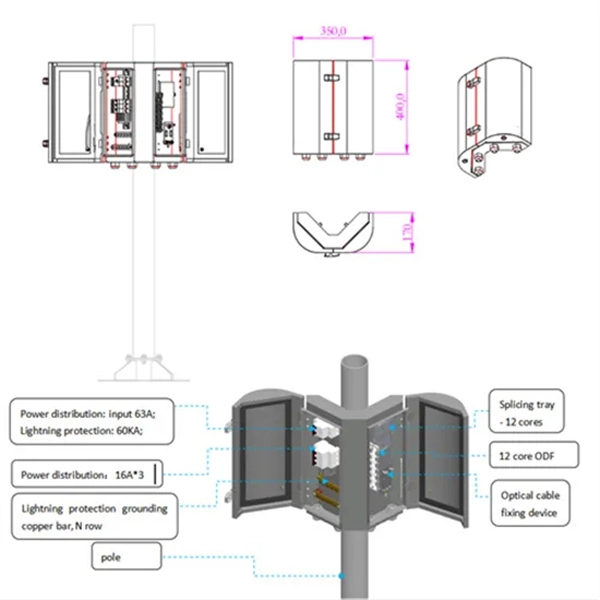

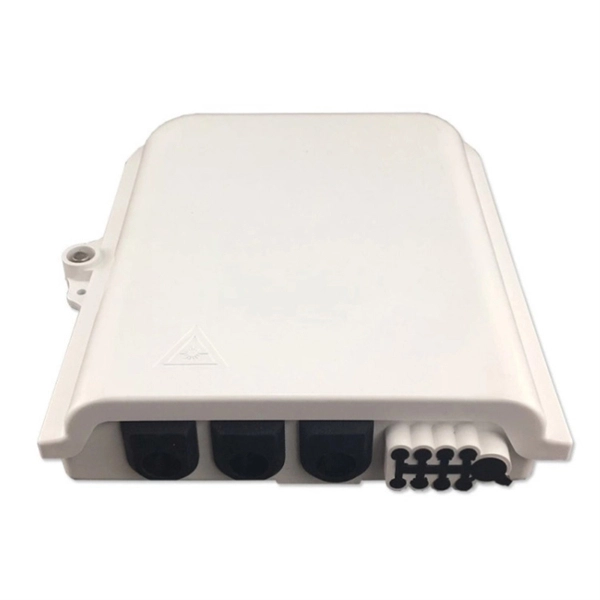

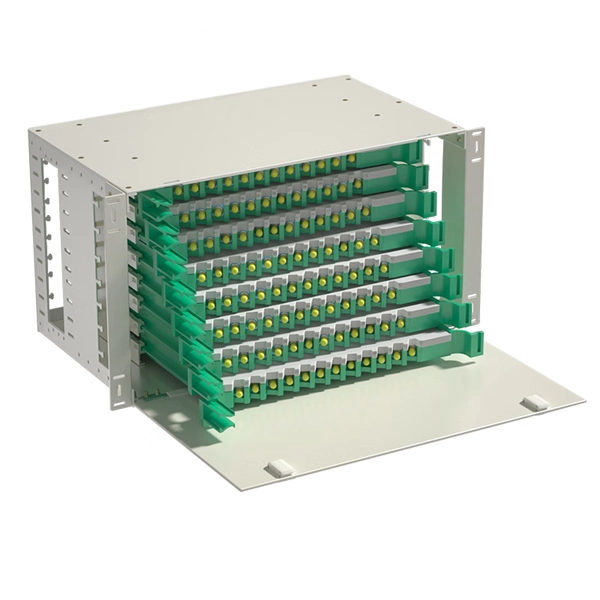

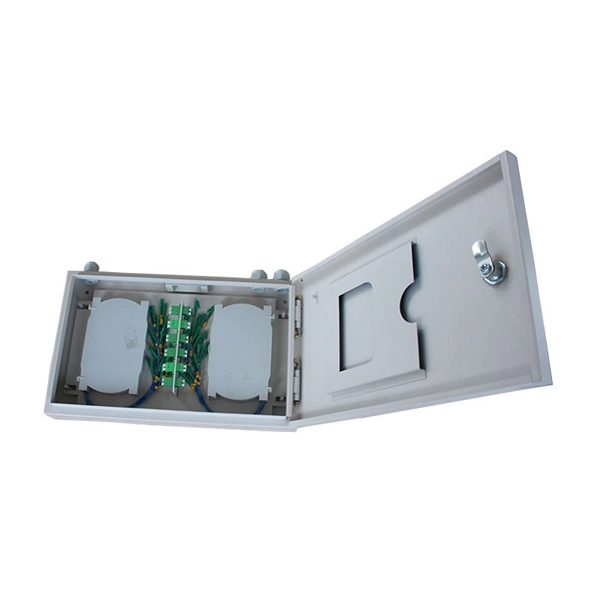

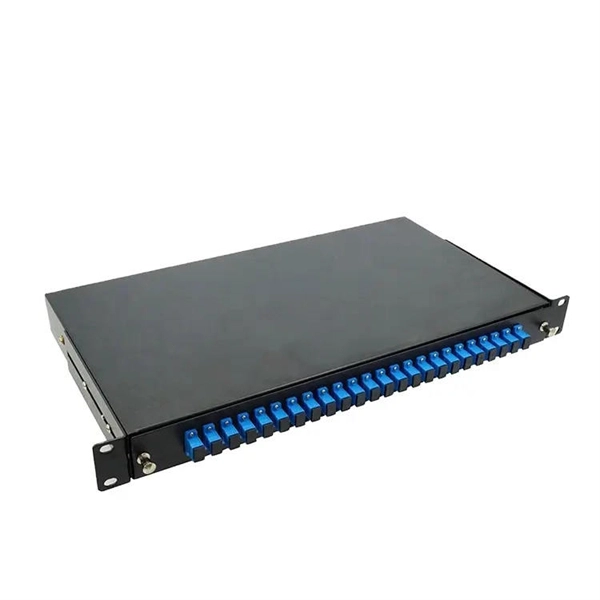

• Place the splitter in a suitable enclosure, tray, or module that fits your network layout.
• Secure the splitter to prevent movement, which could stress the fibers and increase insertion loss .

Step 4: Connect the Input Fiber

• Identify the input port of the PLC splitter.
• Connect the incoming fiber from the OLT (Optical Line Terminal) or main distribution fiber to the input port.
• Ensure the connector is fully seated and clean to avoid signal degradation .

Step 5: Connect the Output Fibers

• Connect each output port to the corresponding ONT (Optical Network Terminal) or distribution fiber.
• Label each output for easy identification and future maintenance.
• Maintain proper bend radius to prevent fiber breakage or excessive loss .

Step 6: Test the Connections

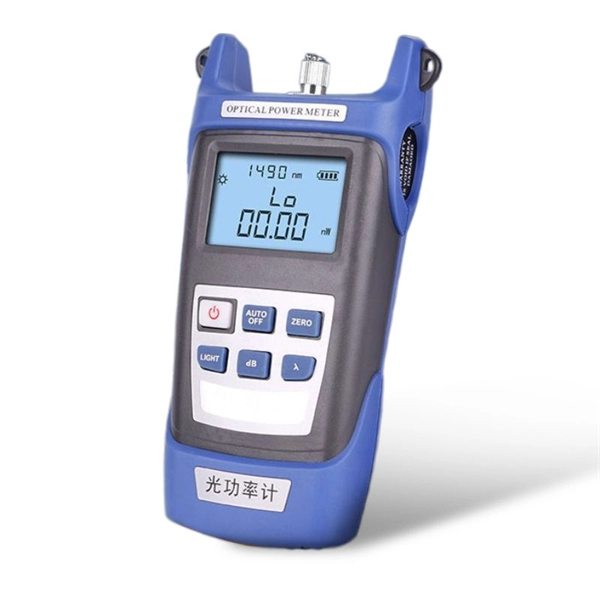

• Use an optical power meter or OTDR (Optical Time-Domain Reflectometer) to verify signal strength and uniformity across all outputs.
• Check for insertion loss and ensure it is within the splitter's specifications (e.g., 3.5 dB for 1×2, up to 20 dB for 1×64), .

Step 7: Finalize Installation

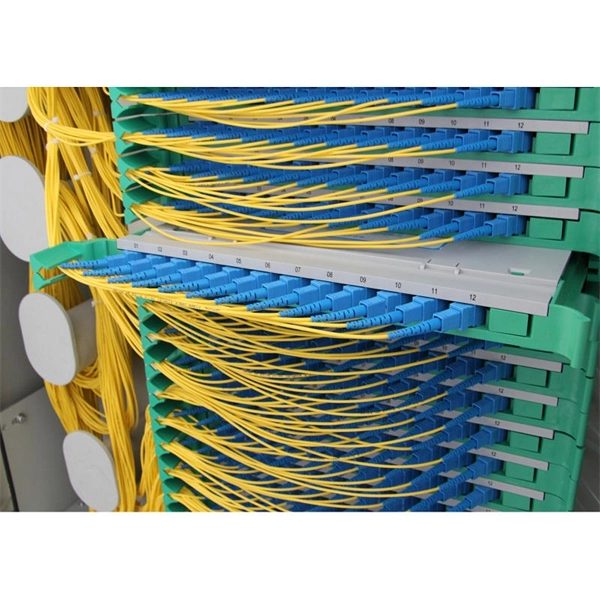

• Organize and secure all fibers in the enclosure to prevent tangling or stress.
• Close the enclosure and ensure it is sealed if installed outdoors.
• Document the installation, including splitter type, split ratio, and fiber connections for future reference . By following these steps, you can efficiently deploy a PLC fiber optic splitter in your network, ensuring reliable signal distribution and minimal maintenance. Proper handling, cleaning, and testing are critical to maintain high performance and network stability.
