What type of module is an optical module
An optical module is a photoelectric transceiver that operates at the physical layer, converting electrical signals into optical signals and vice versa.
Definition and Function
An optical module, also known as an optical transceiver, is a hot-pluggable device used in high-bandwidth data communications. Its primary function is optoelectronic conversion, meaning it converts electrical signals from network equipment into optical signals for transmission over fiber optic cables, and converts incoming optical signals back into electrical signals for processing by the system . Optical modules operate at the physical layer of the OSI model, making them essential for the transmission of raw data across fiber networks .
Components
A typical optical module consists of:
- Optical Transmitter (TOSA): Contains a laser diode (LD) or light-emitting diode (LED) to emit modulated optical signals .
- Optical Receiver (ROSA): Contains a photodetector to convert incoming optical signals into electrical signals .
- Functional Circuits: Include driver chips, preamplifiers, and automatic power control circuits to ensure signal integrity .
- Electrical and Optical Interfaces: Connect the module to the system and fiber optic cables .
Types of Optical Modules
Optical modules are categorized based on their function and form factor:
- Optical Transceivers: Combine both transmitter and receiver in one module, the most common type .
- Optical Transmitters: Only send optical signals.

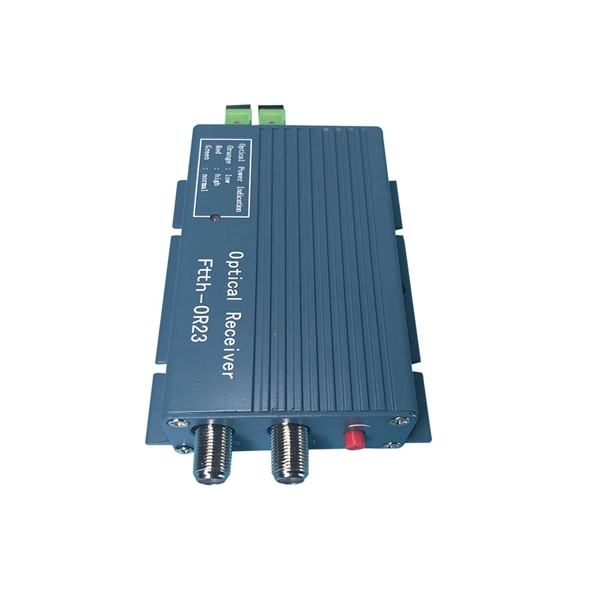

- Optical Receivers: Only receive optical signals.
- Optical Forwarding Modules: Specialized modules for signal routing. Common form factors include:
- SFP (Small Form-factor Pluggable): Up to 1 Gbps, used in enterprise networks.
- SFP+: Up to 10 Gbps, common in data centers.
- QSFP (Quad SFP): 40–100 Gbps, used in high-performance computing and backbone networks.
- CFP (C Form-factor Pluggable): 100 Gbps and above, suitable for long-haul and metro networks .
Summary
In essence, an optical module is a physical-layer transceiver that enables high-speed data transmission over fiber optic networks. Its type can vary depending on whether it transmits, receives, or both, and its form factor determines the data rate and distance it supports .
